Parking Lock is designed to manage the car parking space. It is easy to install and operate and low-cost maintenance.

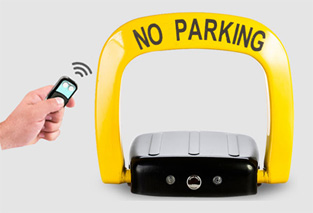

HD-RPL03 Parking Lock is operated by remote controller. Press 'UP' button on Remote controller to rise arm up. Then the parking space is unallowed to use until press 'DOWN' button to follow arm down.
|
Model
|
HD-RPL03
|
|
Parking Dimension
|
460*460*100mm
|
|
Net/Gross Weight
|
9KG/10KGS
|
|
Rated Voltage
|
DC6V
|
|
Static Current
|
≤1MA
|
|
Working Current
|
≤0.8A
|
|
Arm Rising/Falling Time
|
4S/3S
|
|
Remote Controlled Distance
|
≤30M
|
|
Blocker height
|
400MM
|
|
Environment Temperature
|
-30ºC~+60ºC
|
|
Effective Load
|
5000KG
|
|
Protection Grade
|
IP67
|
1.Pressure resistance:
Curved design and thicker steel cover make sure it can endure a pressure of 5000KGS car's rolling without damage.
2. 180° anti collisio
The parking lock has flexible design and self-protection function.
It can rotate back and forth according to the external pressure to protect itself. At the same time, the parking lock can alarm.
Once the external force disappears, the arm will reset to the lock position automatically.
3. High Capacity
4PCS of 1# batteries (or recharge battery as optional).
It's a energy-saved system, 4PCS of 1# batteries can supply the power throughout the whole year.
4.Long remote control distance
The effective distance is at least 30 meters. It's very easy to control it.
5.IP 67 Waterproof
The product can be flushed by water. It can work under the water more than one hours without any influence to the function..
|
